Answer
Apr 14, 2025 - 11:35 AM
That is correct. Two on opposing sides for the jacket and the center bottom port for draining.

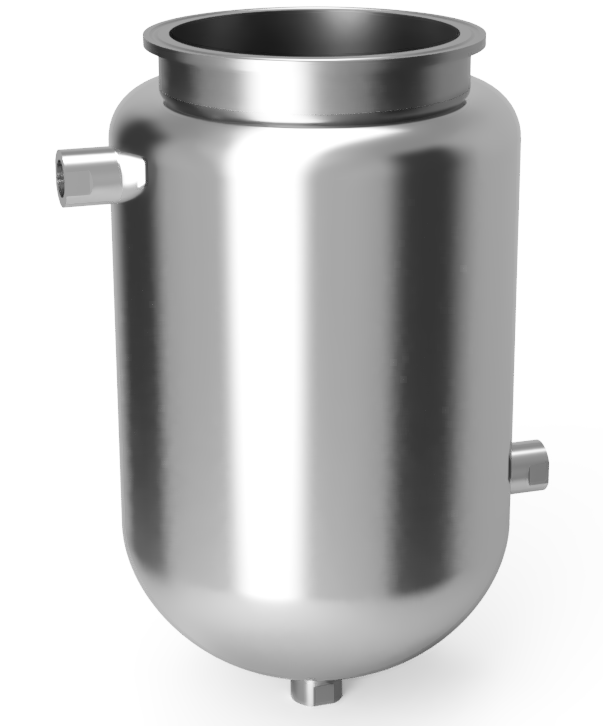

Does the bottom FNPT connection lead to the vessel itself while the side connections are for jacket heat exchange? 8" x 12" Jacketed Collection Base - 1.5" TC Ports
The details table says that there are 3x" FNPT jacket connections, but I don't see why you would need more than one inlet and one outlet for hot / cool heat exchanging fluid. Am I correct to assume that one of these (the bottom FNPT connection) is a drain from the vessel itself?
Status:
Open Apr 14, 2025 - 07:49 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
8" x 12" Jacketed Collection Base - 1.5" TC Ports
